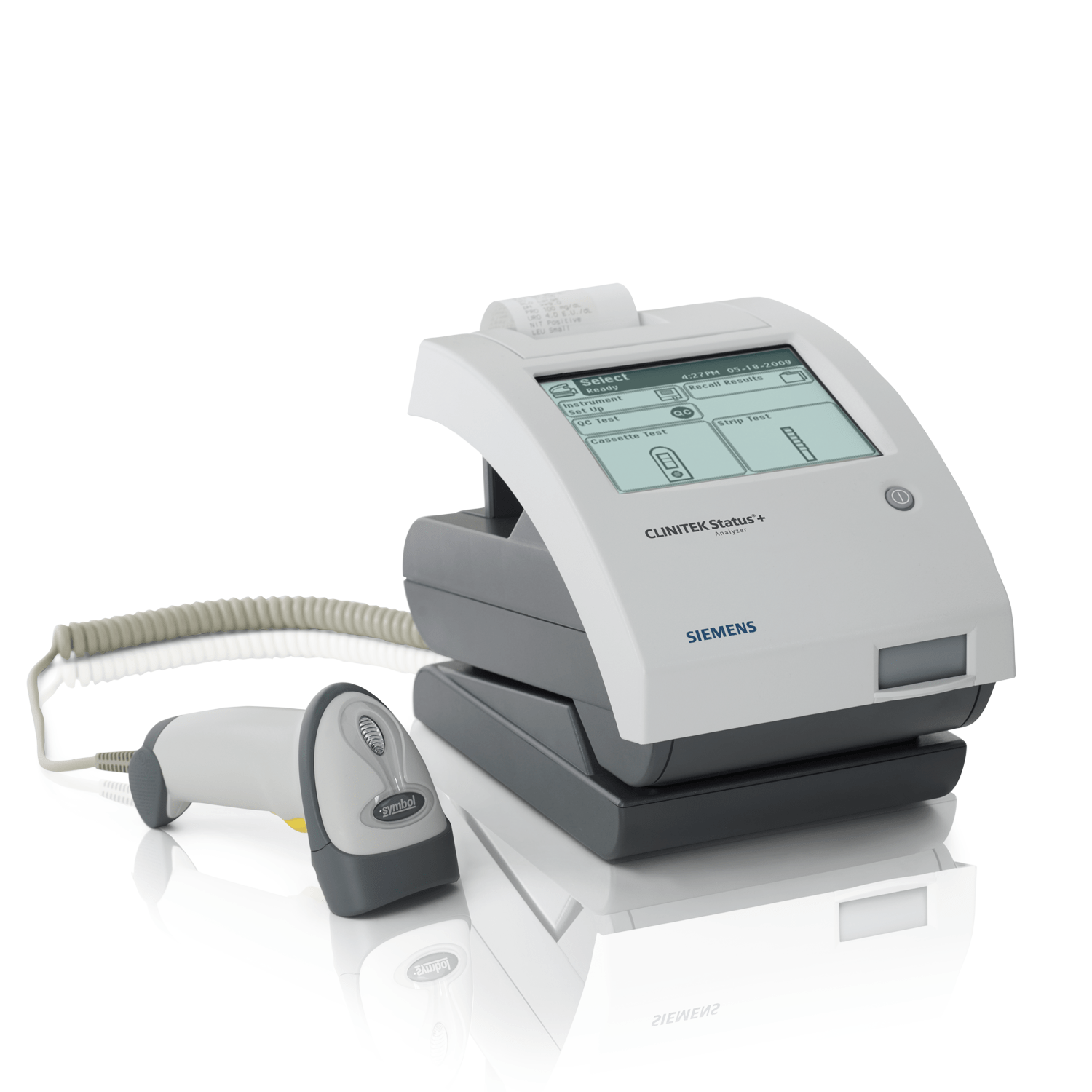

CLINITEK Status® Connect System simplifies wireless or wired connectivity and testing oversight in point-of care urinalysis for improved risk management.
Semi-quantitative Tests Measured
|
|
Routine urine tests
|
albumin, bilirubin, creatinine, glucose, ketone, leukocytes, nitrite, pH, protein, specific gravity and urobilinogen
|
Kidney disease test
|
albumin-to-creatinine ratio
|
Pregnancy test
|
Human Chorionic Gonadotropin (hCG)
|
General Specifications
|
|
Depth
|
27.2 cm
|
Width
|
17.1 cm
|
Height
|
18.5 cm
|
Weight
|
2.3 kg
|
Electrical rating
|
100V – 240V AC, 50-60 Hz (with in-line lead)
|
Battery operation
|
Not available
|
Ambient temperature range
|
18 to 30ºC
|
Humidity range
|
18-80% relative humidity, non-condensing
|
Compliance
|
UL, CE, EMC
|
Calibration
|
automatic, self-calibrating
|
Communication Capabilities
|
|
Communication protocol
|
HL7, POCT1-A2
|
Data transmission options
|
wireless, Ethernet or serial connection
|
Interfaces with leading point-of-care
data management solutions* |
|
Memory
|
|
Patient test results
|
700
|
QC test results
|
200
|
Operator IDs
|
700
|
Quality Control Management Features
|
|
QC testing and reporting
|
|
QC reminders or mandatory prompt
|
|
QC lockout
|
|

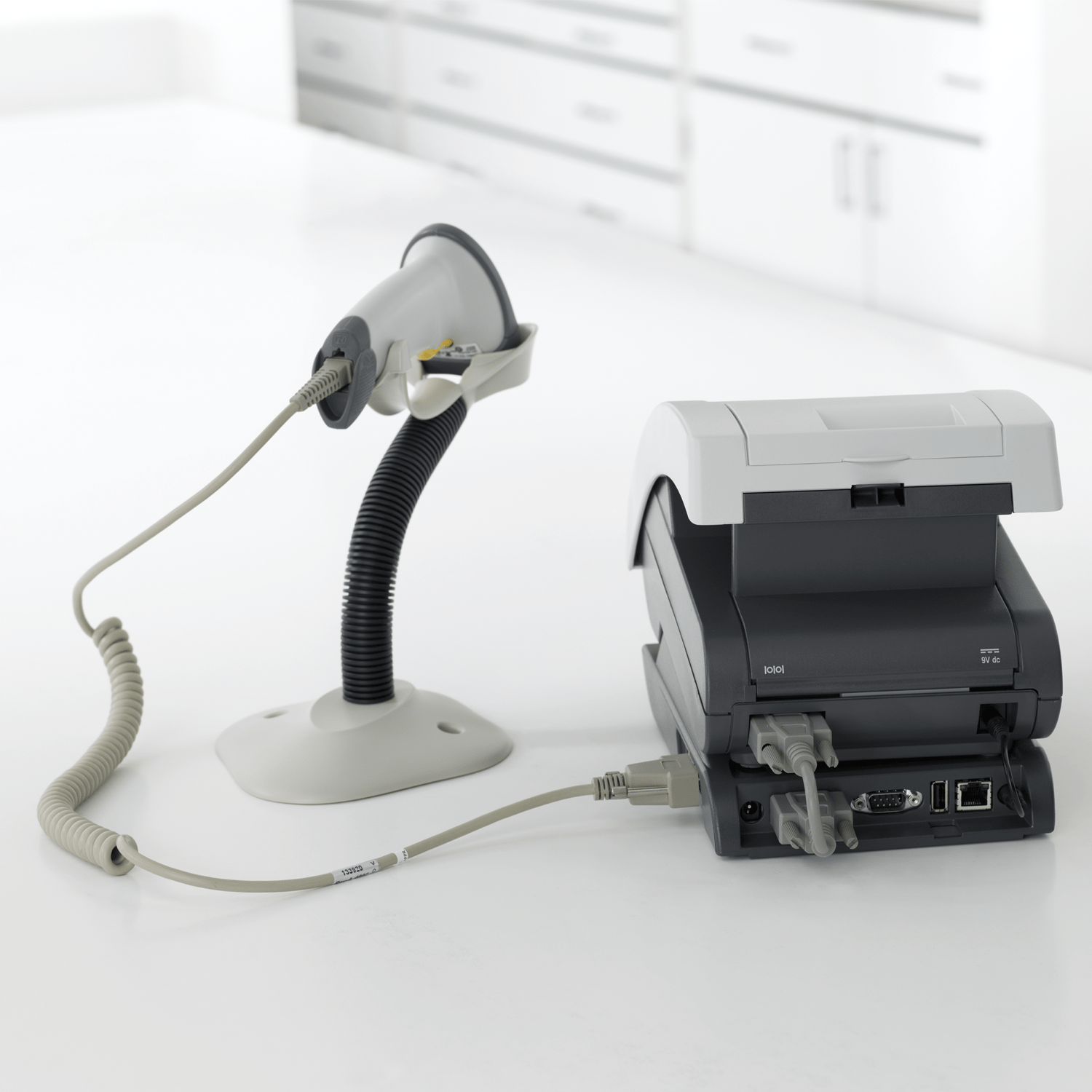

Barcode Data Entry
|
|
Patient ID, operator ID and name,
QC control type, lot number, and expiration date |
|
Barcode Symbology Supported
|
|
Code 93, Code 39 (with and without check digit), Code 128, Coda Bar, Interleaved 2 of 5 (with and without check digit)
|
|
Operator Security Features
|
|
Define up to 700 operators
|
|
Operator lock-out to prevent unauthorized use
|
|
Customize access level for each operator for the following functions:
|

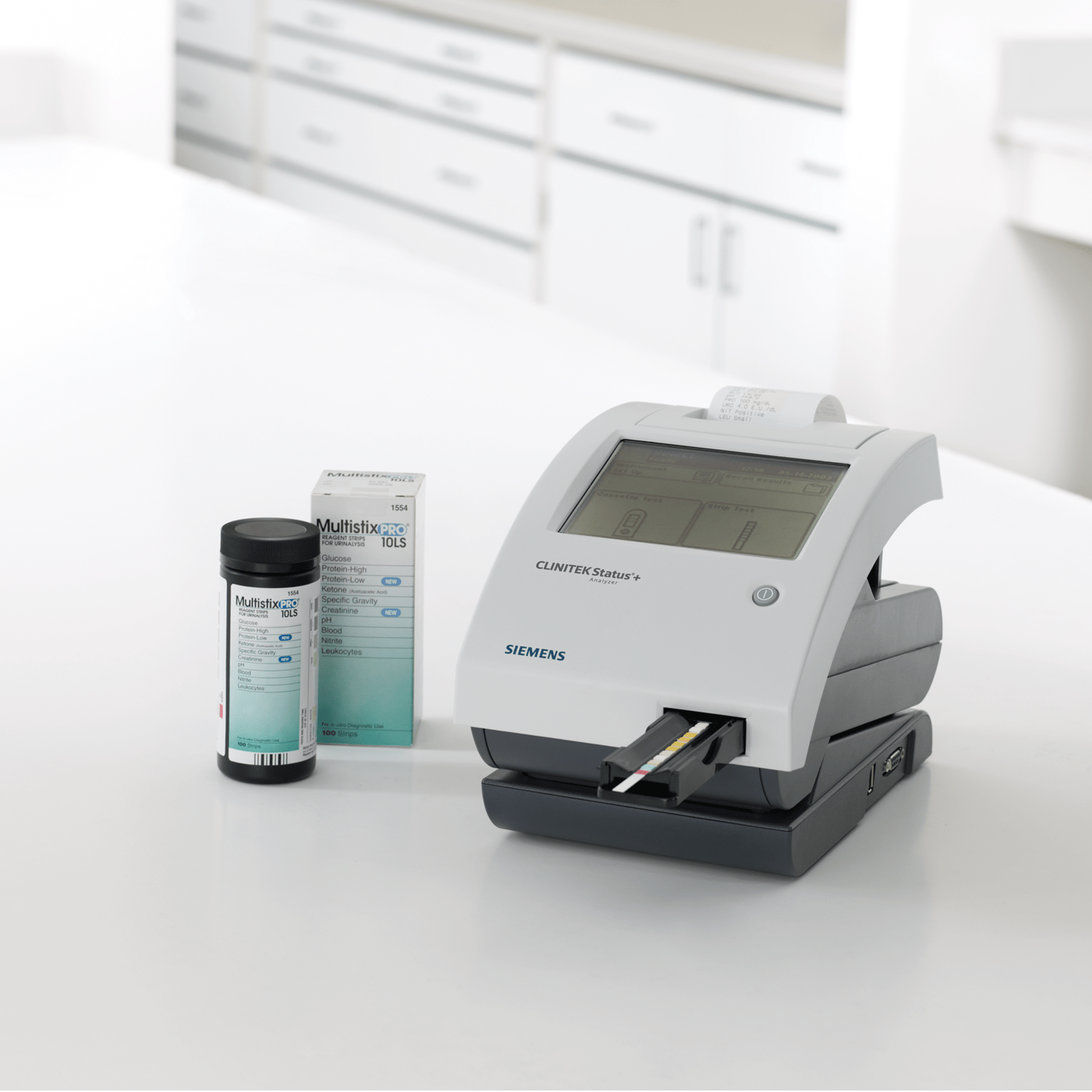

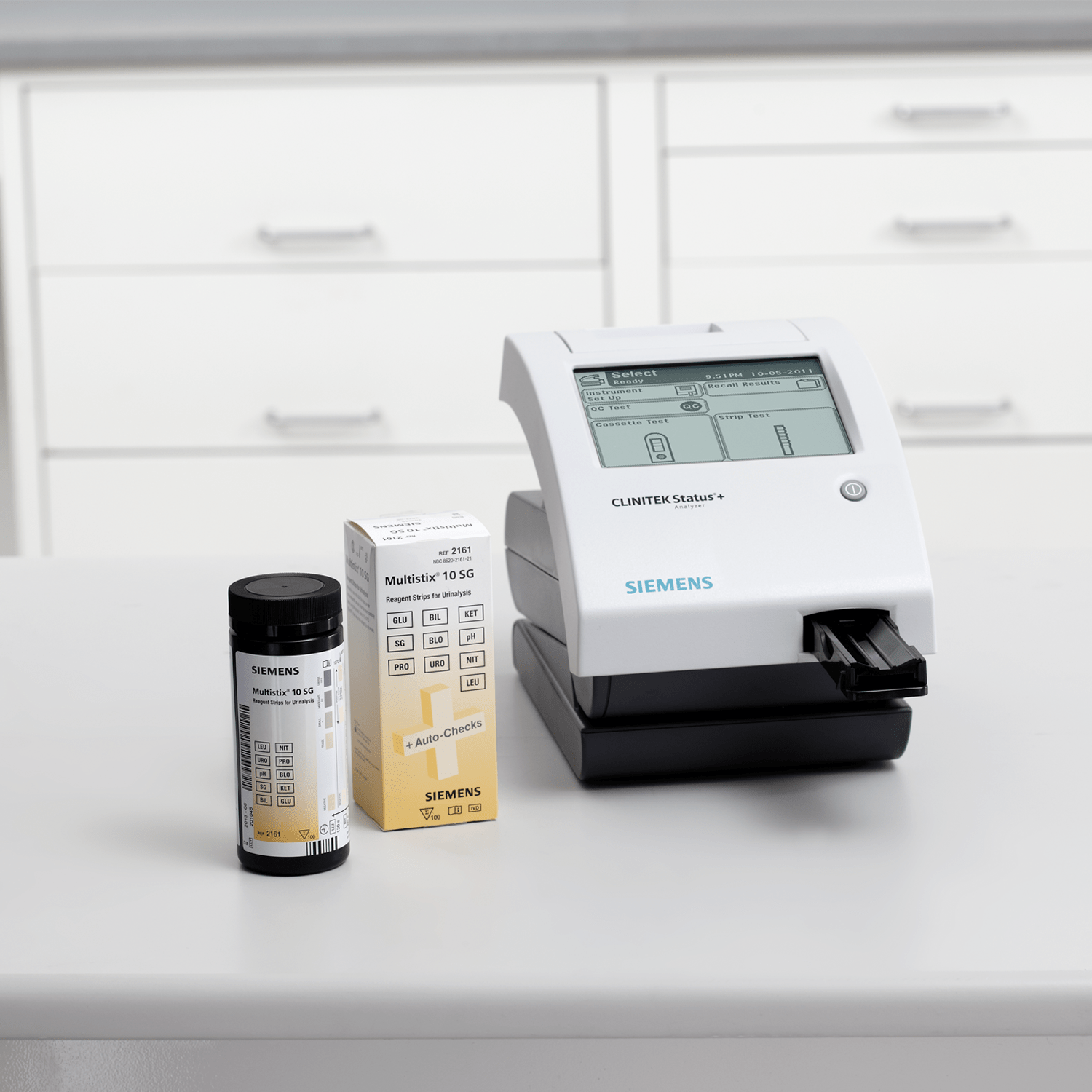

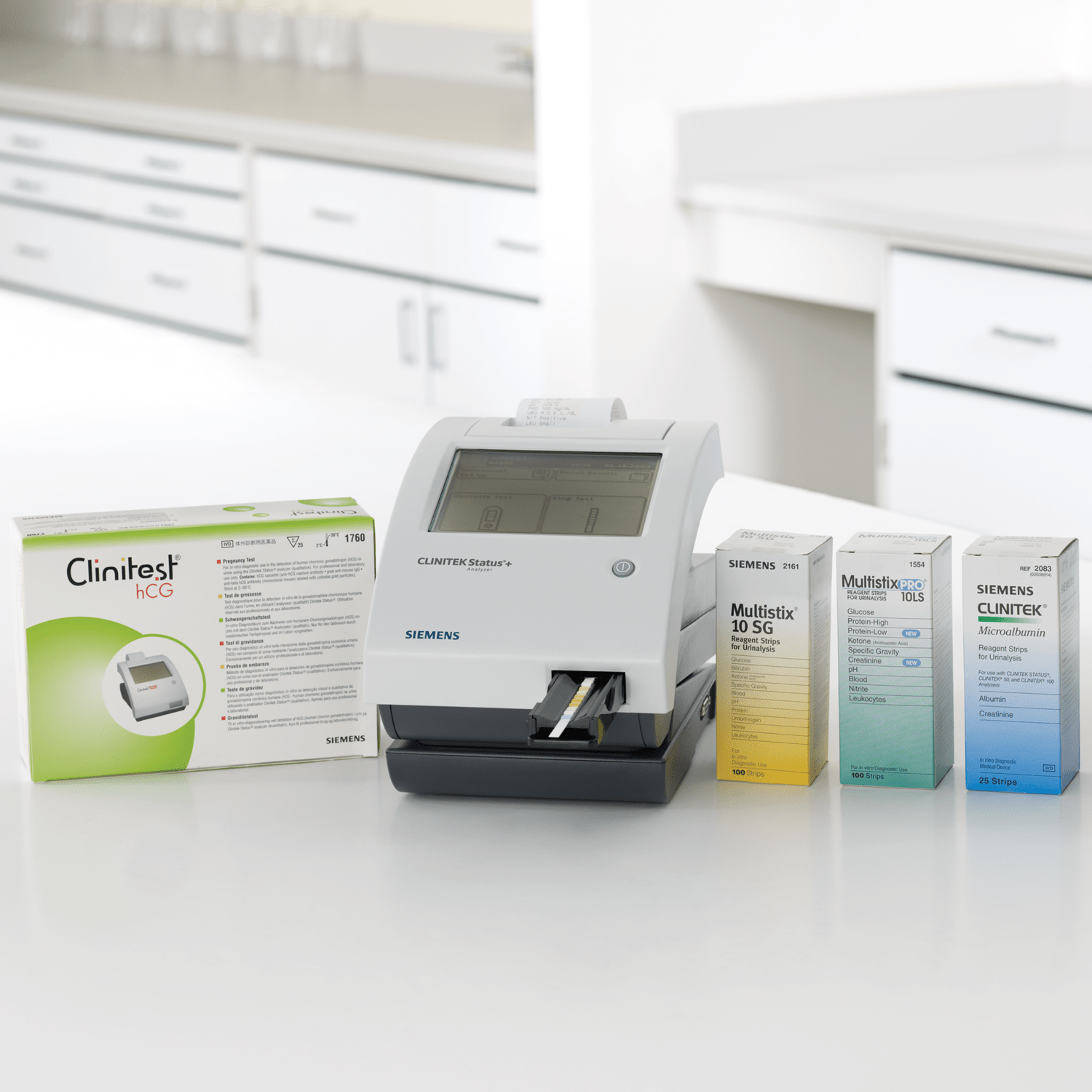

The CLINITEK Status Connect System provides automated reading of the Multistix® family of urinalysis tests:
Auto-Checks:
Service is essential to keep medical equipment operational and safe. Our Nordic service team consists of experienced service technicians stationed across the Nordic countries. Our service technicians are ready to take on your every service need.”
Delivering Confidence and Simplicity during Neuromuscular Blockade
TetraGraph is a quantitative neuromuscular transmission monitor based on electromyography (EMG). The TetraGraph monitor stimulates, measures, analyzes and displays muscle function in surgical patients receiving neuromuscular blocking agents (NMBAs). NMBAs are used in almost 50% of surgical cases. Inadequate reversal of NMBAs can lead to residual neuromuscular blockade (RNMB). RNMB delays recovery and can lead to life-threatening complications. To prevent complications, quantitative neuromuscular monitoring is rapidly becoming the standard of care when NMBAs are administered.
Anesthesia breathing circuit and kits
Limb-O™ single limb anesthesia breathing circuit and kits. Each Limb-O™ circuit is divided by a flexible septum running the length of the tube. Limb-O™ effectively transfers heat from the expiratory to the inspiratory side of the circuit. Increased thermal efficiency rates during surgery keeps gases warm and body temperature normothermic.
Less weight means less torque on the ET tube and less plastic is being used. Decreased compliance helps lead to accurate delivered volume. Accomplish more with less as the single limb design services pediatric through adult patients. Limb-O™ as all Vyaire circuits are made without latex.
Solution for continuous core temperature monitoring
The temperature variable is a key indicator of the patient’s febrile state. The continuous nature of the measurement is quite difficult to obtain and only a few restrictive devices (rectal, esophageal probes, etc.) allow continuous core temperature monitoring.
eCelsius Medical, class IIB medical device, is a miniaturized electronic ingestible capsule that transmits core temperature data continuously. The capsule communicates in real time with a dedicated monitor, e-Viewer Medical, at a sampling period of 30 seconds. This monitor allows data recording, and an alert may be triggered if a threshold has been exceeded. The communication distance between the capsule and the monitor ranges from 1 to 3m (depending on environment and patient).
The capsule also has its own memory. In the case of a communication disruption between the monitor and the capsule, an a posteriori automatic synchronization of the data is performed.
Innovative phototherapy cover made of a high-tex material
BiliCap® is made of a 3-layered functional specialty knit fabric. A highly elastic, breathable membrane in the core assures the phototherapy cover’s imperviousness to light. The 3D knit spacing fabric underneath ensures optimum noise attenuation, provides an anti-slip effect and permanently retains the cover’s shape.
Additionally, the material is characterised by low weight and contains an active substance with permanently antimicrobial effect.
BiliCap® optimally shields the surrounding treatment places against the high light intensity while providing fast and flexible access via 4 side and 2 head/foot flaps. The one-size design allows flexible use, fitting all incubator models commonly available on the market. BiliCap® is certified according to Oeko-Tex® Standard 100, washable up to 95 °C and suitable for tumble-drying. Guaranteed permanence of function and colour even in the case of frequent laundering. Available in 2 colours with individual ornaments and embroidery.
